- realtime HD LTE & Network streaming
- ultra small
- high bitrate up to 30Mbps
- supports simultaneous dual video streaming
- supports HD-SDI as well as HDMI
- HDSDI & HDMI streaming decoder available

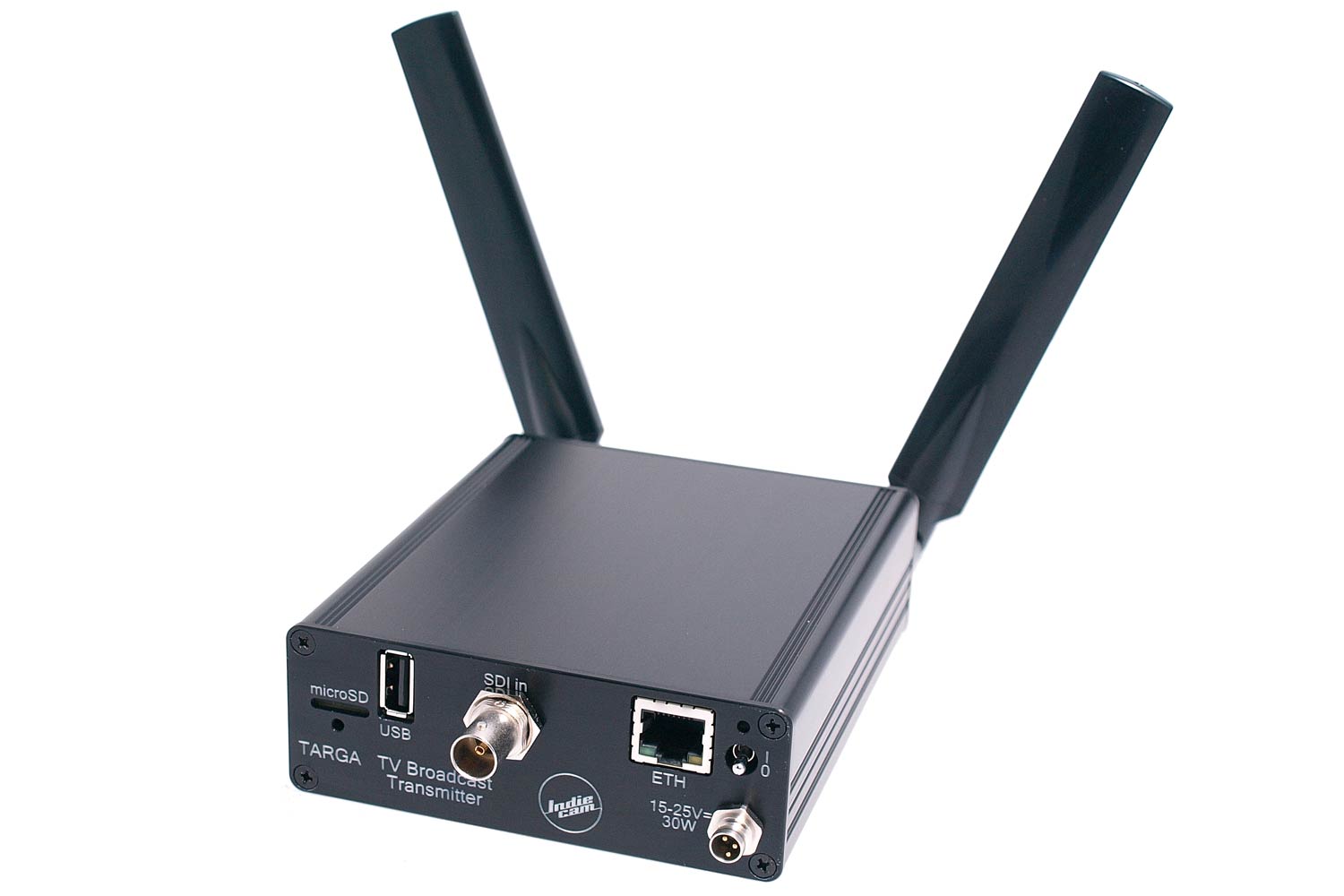

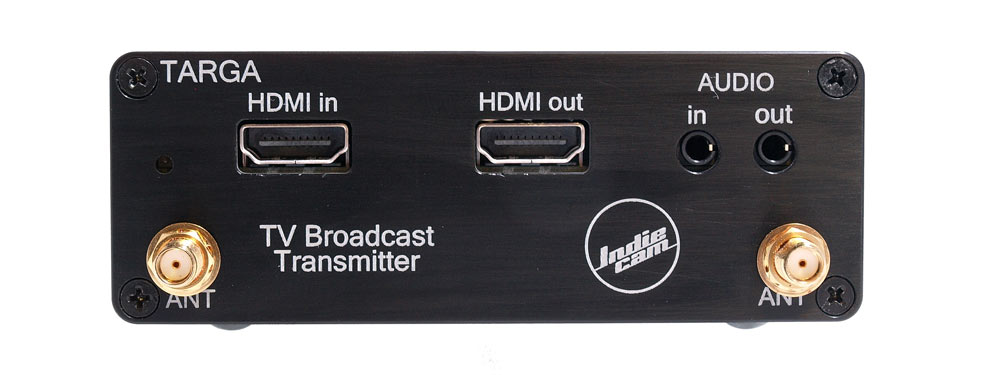

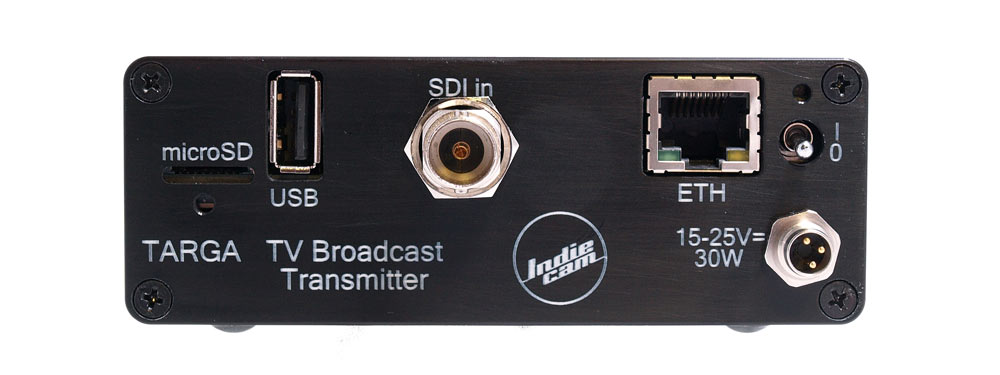

TARGA-TRANSMITTER allows realtime video transmission into the cloud or into any broadcast studio in the world in real time and with an incredible low latency in the encoder. It provides 3G HDSDI and HDMI connectivity – any type of camera can be connected. Broadcast features include a superior high bitrate encoding at up to 30Mbps, a built in video-scaler, Intercom, wide range DC-IN, and many more. There are many professional options available as upgrades. These include genlock out, custom metadata, CAN-interface for in-vehicle applications, serial interfaces to control additional other devices of any kind from TARGA, and many more. Project oriented custom features can be easily integrated due to the flexibility of the system. The unit is battery powered with a built in rechargeable battery. It works without any cables to support easy mounting on vehicles, humans, animals, sports equipment or any other moving object.
TARGA-TRANSMITTER has dedicated functions to be able to work correctly on critical networks like LTE. TARGA supports simultaneous dual video streaming. For instance, one high resolution stream can be routed to a broadcast infrastructure and one low resolution SD stream can be used for previewing.
Users can route the high end content streams to any location and streaming platform worldwide. The streams can also be routed directly to user who can view the content directly on any device (mobile phones, tablets, laptops, PC, etc.).

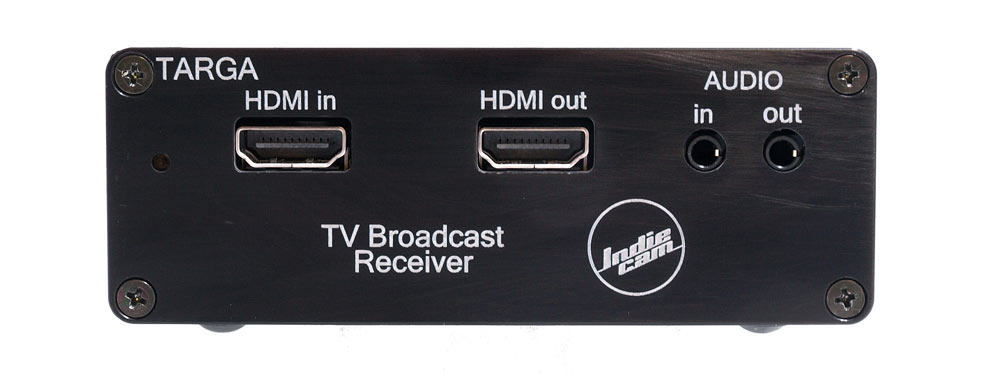

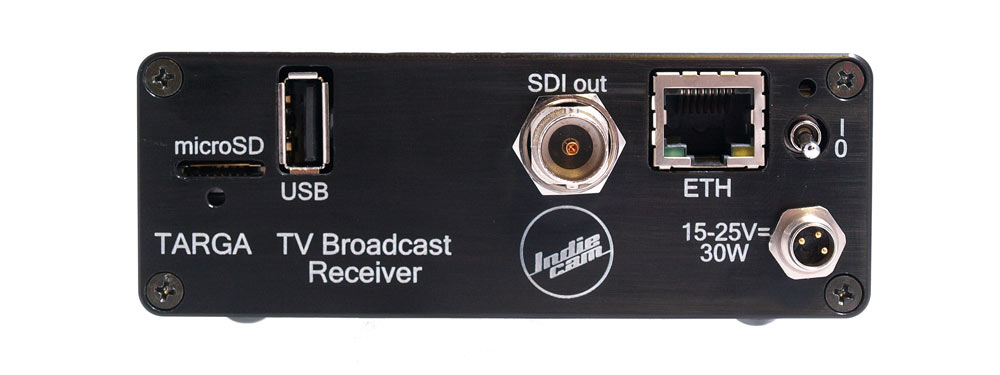

TARGA-RECEIVER is a portable broadcast decoder, which converts any H.264 stream into HDSDI and HDMI signals. With this device it is easy to receive TARGA-streams and directly inject them into a traditional SDI-based broadcast environment.
But TARGA-RECEIVER is much more. It enables the producer to use content generated by audiences, crowds, participants, eye-witnesses and enforcement-agencies directly and potentially live and easily within an traditional infrastructure.

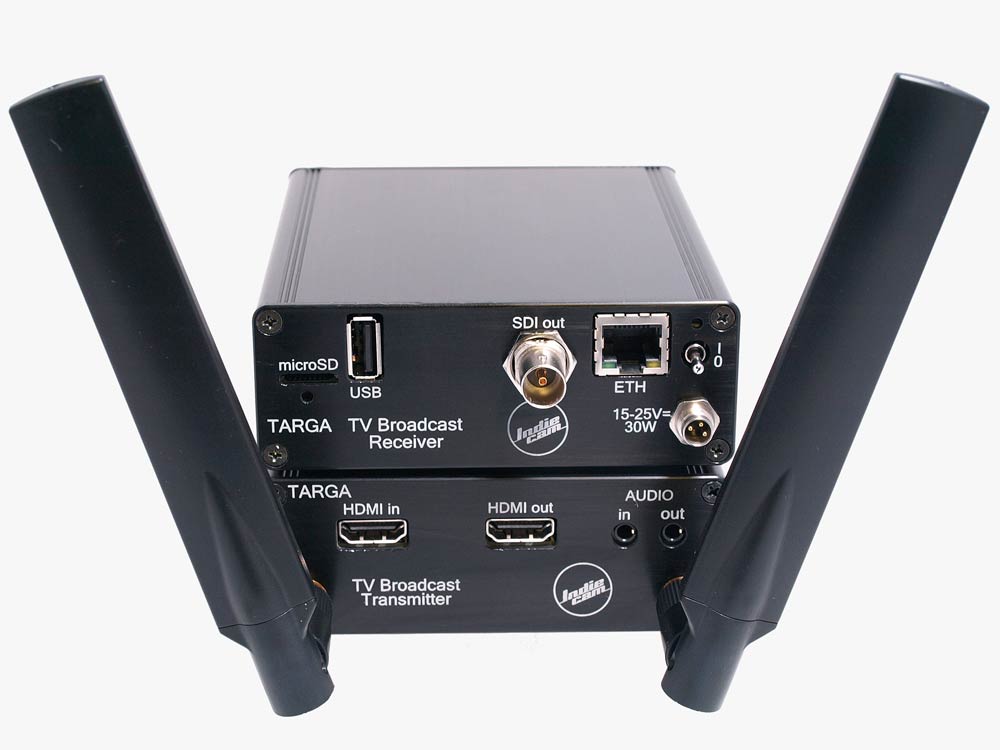

Both TARGA devices are highly configurable for use in professional broadcast environments and large networks.
|Technical Data||Volltage Supply||Battery powered: 12V-25V|
|External power supply: 9V- 36V (no battery)|
|Live time with build in battery||~2h|
|Weight||600g (incl. built in battery)|
|Size||120mm x 105mm x 38mm (LxWxH)|
|Size OEM||120mm x 98mm x 20mm (LxWxH)|
|HDMI Input||(A, Standard)|
|HDMI Output||(A, Standard)|
|Audio Input||(3.5mm mini jack)|
|Audio Output||(3.5mm mini jack)|
|microSD Card Slot|
|Antenna||SMA (2 x)|
|Power Supply||3 pin DC jack|
|RS485 and RS232|
|CAN Bus Interface||Protocol 2.0 part A and B, Bitrates up to 1MBit/s|
|LTE sticks and protocols||1080i 50/59.94/60|
|Compression Algorithm||Baseline, Main and High Profile H.264|
|Bit Rate||200 Kbps to 30 Mbps|
|Built in Video Scaler and Deinterlacer|
|Embedded Audio Output|
|Supports 700MHz, 800MHz, 900MHz, 1,7 GHz, 1,8 GHz, 2,1 GHz and 2,6 GHz|
