- Large format square sensors
- Latest global shutter pixel architecture
- High dynamic range
- Excellent low-light performance
- CinemaDNG RAW

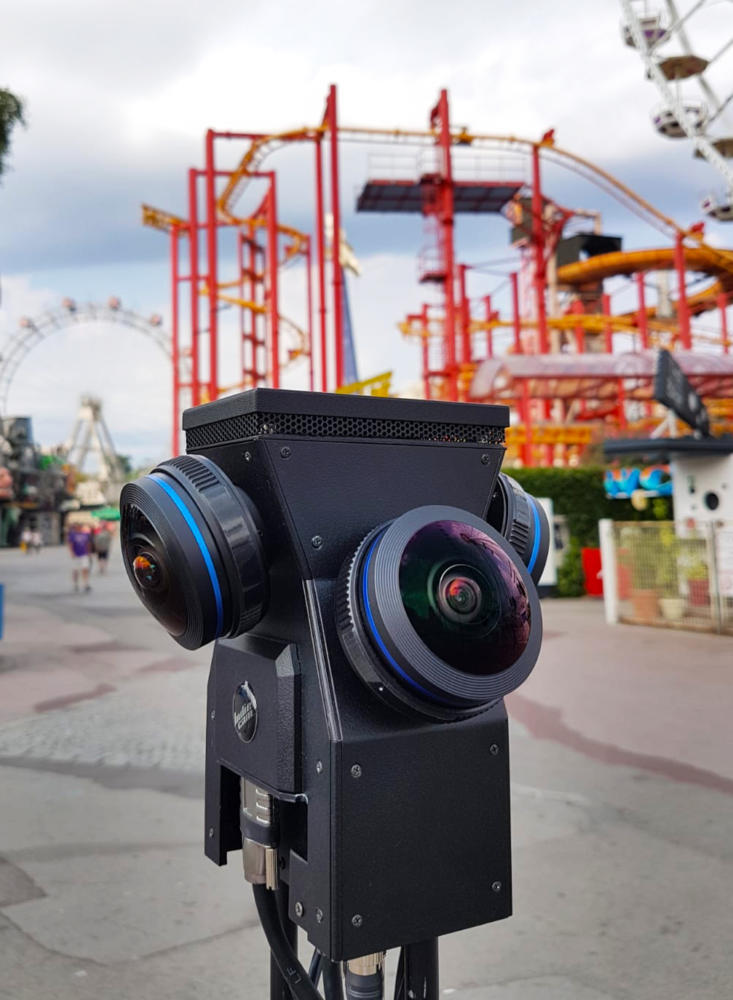

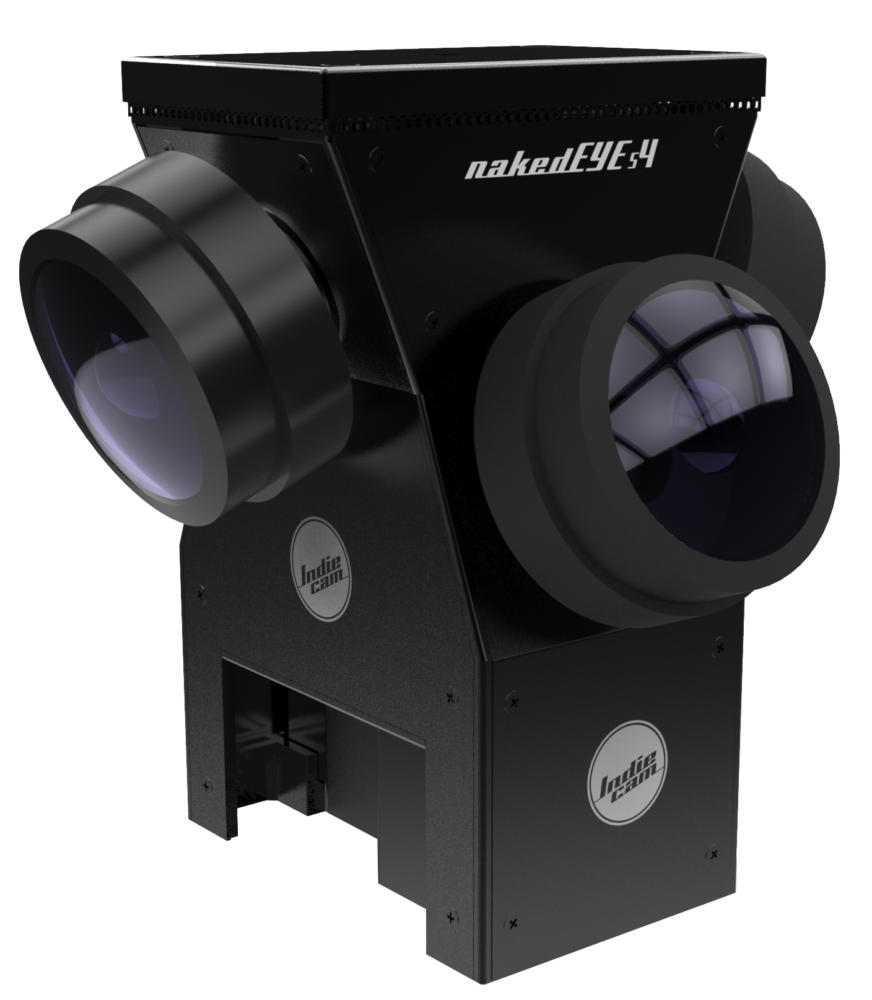

nakedEYE s4 is our latest 6K RAW VR camera system with very high image quality, specifically designed for capturing high quality 360° cinematic virtual reality experiences. The amazingly small system features four camera modules with large format global shutter sensors of the latest generation, which are fully synchronised and combine superior dynamic range with excellent low-light performance.
nakedEYE s4 covers the entire 360° sphere in a resolution of 6K while measuring only 95 x 90 x 150mm (3.74″ x 3.54″ x 5.90″) and weighing 1,2kg (2.6lb). Furthermore, you have full control over all camera settings at all time.
The robust system records 12 bit CinemaDNG RAW files, the industry-leading RAW format which was spearheaded by Indiecam, in up to 50fps. Indiecam’s CinemaDNG files with rich metadata enable streamlined post production workflows for nakedEYE s4, leveraging state-of-the-art stitching algorithms and the benefits of a high-end RAW workflow.
Tech specs
| Sensors | Size | 2/3“ |
|---|---|---|
| Resolution | 4x 2432 x 2048 | |
| Readout | Progressive | |
| Shutter | Global | |
| Pixel size | 3.45 µm | |
| A/D converter | 12 bit | |
| Sensitivity | 200 ASA | |
| Genlock | Custom | |
| Mount | C-mount | Standard |
| Modes | RAW, 12 bit | 6K equirectangular up to 50fps |
| Interfaces | Video | Custom |
| Power | V-mount & Lemo | |
| Control | PoE, Wifi & USB 2.0 | |
| AUX | Lemo | |
| Monitoring | HDMI | |
| System features | White balance | Manual |
| Colour Space RAW | CinemaDNG RAW RGB 4:4:4 | |
| Profiles | Auto start with last settings | |
| Timecode | REC RUN TC embedded in CinemaDNG | |
| Power | Voltage | 6 – 24 V DC |
| Consumption | 100 W | |
| Dimensions camera head | Size w/o lens | 95 x 90 x 150 mm (3.75″ x 3.54″ x 5.90″) |
| Weight | 1,2kg (2.6lb) | |
| Dimensions recorder | Size | 360 x 260 x 110mm (14.17″ x 10.23″ x 4.33″) |
| Weight | Approx. 4,9kg (10.8lb) | |
| Environmental | Operation | 0 – 50 °C, 20 – 80 % RH |
| Storage | -30 – +60°C, 30 – 95 % RH |
Watch the demo footage directly on Youtube. Make sure to change the settings to 5K in order to enjoy the best image quality. Or click HERE to download sample CinemaDNG source files and stitched equirectangular HEVC and H.264 clips. To process our CinemaDNG files we recommend Adobe After Effects and DaVinci Resolve. For stitching we recommend Mistika VR and Kolor Autopano Video/Giga.
