indieGS2K

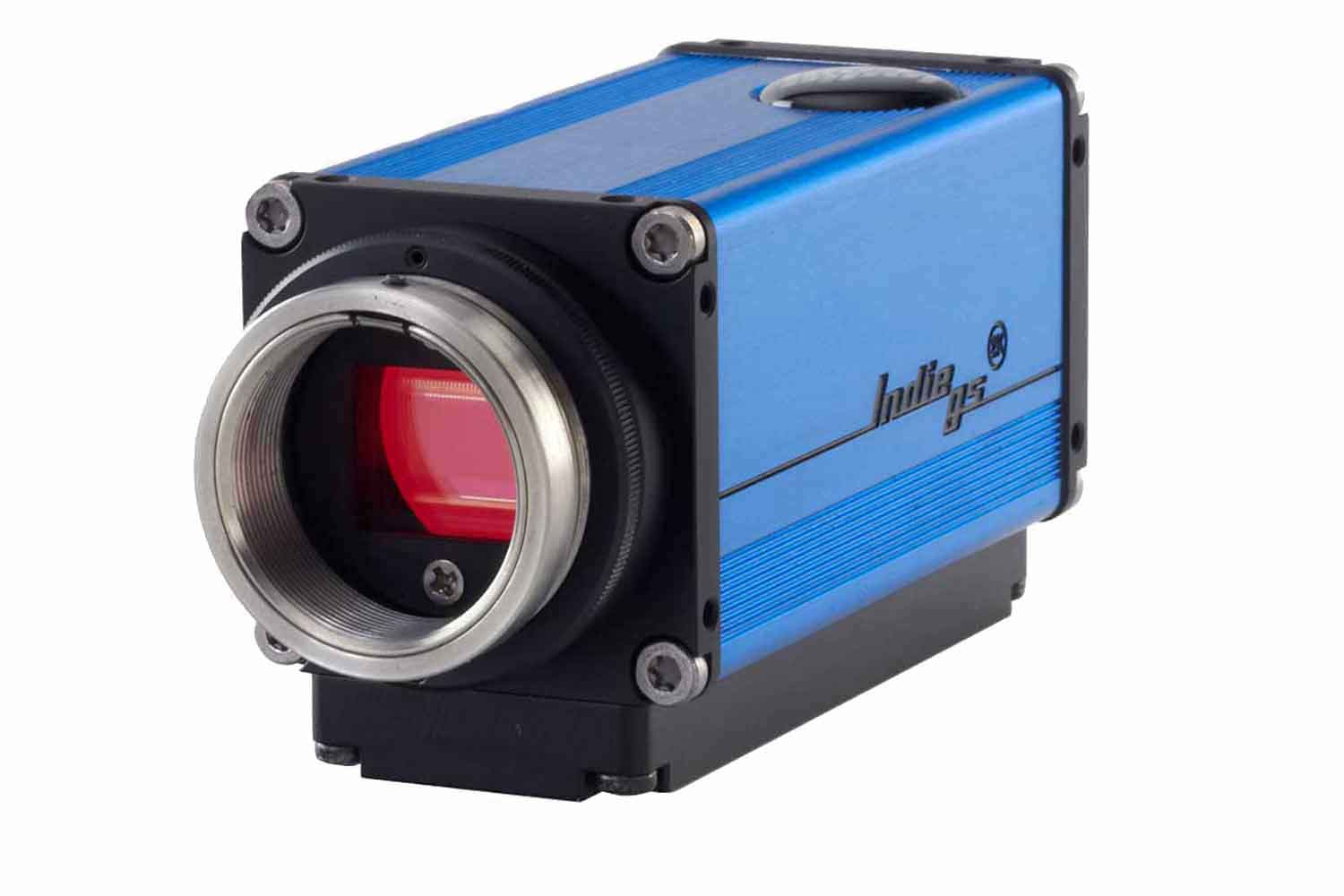

gs2k_3_products_white
Global Shutter - 2k 60p / HD-SDI / 12bit RAW / 4:2:2
  • Global Shutter 2/3″ CMOS camera
  • Superb 2k image quality
  • 12 bit colour depth to take your images to the big screen
  • Extremely lightweight and compact form factor
  • Minimum inter-ocular distance of only 40 mm for 3D usage
  • C-mount, miniPL-mount, and B4-mount option
The indieGS2K measures only 40 x 40 x 100 mm, weighs just 170g and operates stand-alone without the need of a control-box. It incorporates a high-grade 2/3 inch CMOS global-shutter sensor and delivers up to 60 frames of 2k footage in 12 bit RAW.

The modular design and a selection of durable and compact accessories make the indieGS2K the perfect tool for every shot that demands the highest possible image quality, minimal weight and tight dimensions. In addition, the indieGS2K enables you to shoot the roughest action footage free from rolling shutter issues. It is also perfectly suited for multi-camera applications and elaborate 360° VR-Rigs.

CinemaDNG Workflow
The highest image quality is obtained by recording CinemaDNG files on the Odyssey 7Q+ recorder. The data can be ingested directly from the SSDs and CinemaDNG files perfectly integrate into most post-production workflows.

Broadcast Workflow
For broadcast applications the indieGS2K teams up with the indieMORPHO, a broadcast CCU, paint-box, and advanced image processor. This tiny box converts the indieGS2Ks native RAW-over-HDSDI signal to pristine uncompresses YUV 4:2:2 3G HDSDI.

This unique feature set and the smooth integration of indieGS2K CinemaDNG footage into almost any post-production workflow makes it a versatile tool for feature film, high-end broadcast production, live coverage, and commercials. The camera has a C-mount and miniPL lens mount with adjustable back-focus that allows you to choose from the wide range of high-resolution lenses. Adaptors for B4-mount are also available.

360° VR
Since it offers Genlock Sync input through a second BNC connector, the indieGS2K is especially well suited for 360° VR, 3D, and other multi-camera applications. Large arrays of cameras can easily be daisy-chained and simultaneously configured via one single remote connection.

Wireless Lens Control
Equipped with the indieIFC motor system focus and iris can be precisely operated with wireless follow-focus controllers like the cmotion cvolution.

indieGS2K_IFC_greyBG_150627



References

hots_poster_2

IN THE HEART OF THE SEA

Director: Ron Howard
DP: Anthony Dod Mantle
Writers: Charles Leavitt, Rick Jaffa, Amanda Silver, Nathaniel Philbrick
Starring: Chris Hemsworth, Cillian Murphy, Brendan Gleeson
Release: 2015
rush_poster_3

RUSH

Director: Ron Howard
DP: Anthony Dod Mantle
Writer: Peter Morgan
Starring: Daniel Brühl, Chris Hemsworth, Olivia Wilde
Release: 2013

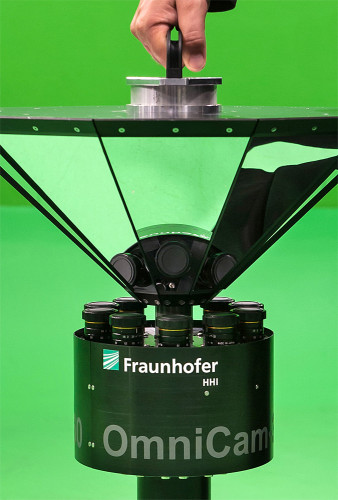

indie_OMNICAM_handheld

OMNICAM

Partner: Fraunhofer HHI, Berlin

TechSpecs

Sensor Size CMOS, 2/3“
Resolution 2048 x 1080
Readout Progressive & Interlaced
Shutter Global
Pixel Size 5.5 µm
Sensitivity 400 ASA
F8 @ 2000 lux
Genlock Trilevel Sync Master/Slave switchable
Mount C-mount with backfocus adjustment, lockable
PL-mount optional
Modes RAW, 12 bit 1080p24 / 1080p25 / 1080p30 / 1080p50 / 1080p60
1080p23.98 / 1080p29.97 / 1080p59.94
720p50 / 720p59.94 / 720p60
RAW, 10 bit 2kp24 / 2kp25 / 2kp30 / 2kp50 / 2kp60
YUV 4:2:2 10 bit
(with indieMORPHO)
1080p24 / 1080p25 / 1080p30 / 1080p50 / 1080p60
1080p23.98 / 1080p29.97 / 1080p59.94
1080i50 / 1080i59.94 / 1080i60
720p50 / 720p60
Interfaces 3G HD-SDI BNC
Genlock-In BNC
2 x I/O Power + RS-485
2 x Status LED Amber/Green
Image Gamma Standard & Custom LUTs
White Balance Auto/Manual
Colour Space YUV REC 709
Colour Space RAW RGB 4:4:4
Presets User Preset can be saved, Restore Factory Defaults
Power Voltage  7 – 24 V DC
Consumption  4 W
Dimensions Size w/o lens  39.8 x 39.8 x 100 mm
Weight w/o lens  approx. 170 g
Environmental Operation  0 – 55 °C, 10 – 90 % RH
Storage  -20 – +70°C, 10 – 90 % RH
Protection Class  IP40, CE
Broadcast-Workflow

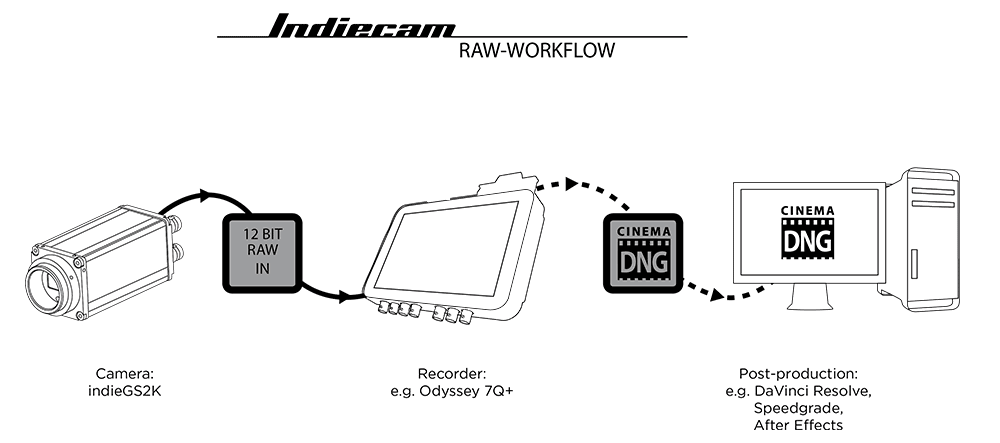

workflow_3d_2

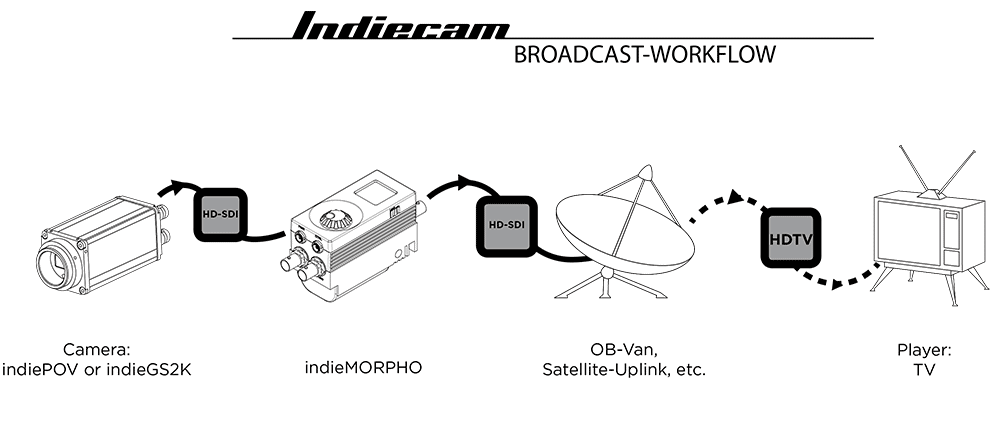

workflow_broadcast_3

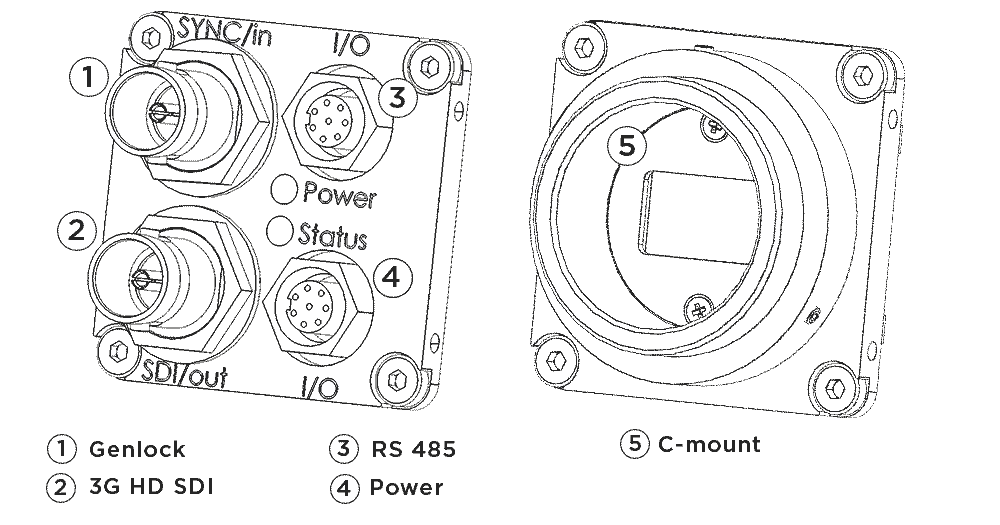

camdrawing_3

Demo Footage

Download below sample footage:

Find here an Adobe-CameraRAW-Preset for
After Effects and Photoshop.
