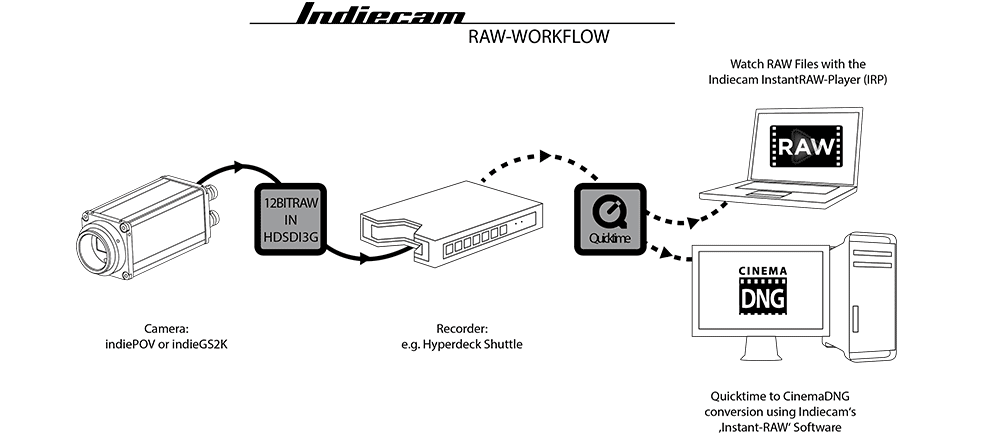

The indiePOV is connected with a simple HDSDI video-cable to the Hyperdeck-Shuttle. 2.5″ SSDs as recording media are cheap and fast and provide hours of recording time when using Indiecam´s instantRAW.
The HyperDeck Shuttle records uncompressed HDSDI. RAW-Data from the indiePOV in the HDSDI stream is directly stored on the SSDs, wrapped into QuickTime files. Our software package instantRAW2CinemaDNG then extracts the RAW-Data from the QuickTime files and stores it as CinemaDNG image sequences. Metadata can be added in the GUI of the software. Also, the entire data-management and file renaming can be done in the software.
For instant playback of instantRAW QuickTime files use our software instantRAW-Player. It features realtime debayering, gamma-control, full VTR controls, etc..
|VIDEO IN||HDSDI 10-bit, HDMI|
|VIDEO OUT||HDSDI 10-bit, HDMI|
|AUDIO IN||SDI: 16-channel embedded in Quicktime|
|AUDIO OUT||SDI: 16-channel embedded in Quicktime|
|STORAGE||1x 2.5″ SSD|
|RECORDING||1080p/23,98; 1080p/24; 1080p/25; 1080p/29,97; 1080p/30|
|CODECS||Indiecam instantRAW via uncompressed 10-Bit QuickTime
(also Apple ProRes 422 (HQ) QuickTime,Avid DNxHD QuickTime, Avid DNxHD MXF)
|SIZE (WxLxH)||116 x 156 x 26.7mm|
