indieASSIST ST


HD video assist for Arricam ST - HDSDI
  • Excellent image quality
  • High dynamic range
  • Flicker free
  • Automatic and manual exposure control
  • Mounts on the original IVS mounting points

The indieASSIST ST is a new, rugged Full HD video assist for ARRICAM Studio 35mm film cameras with the proven quality of the indieASSIST family of video-taps. It provides exceptional image quality for all crew on set, allowing to judge images far better than before. The high resolution images show true colours and have sharp, high contrast with excellent dynamic range.
With our own unique precision miniature optics from Indiecam that are optimized for modern high resoluton sensors, the image quality achieves the highest standards possible for an HD-video-assist system.

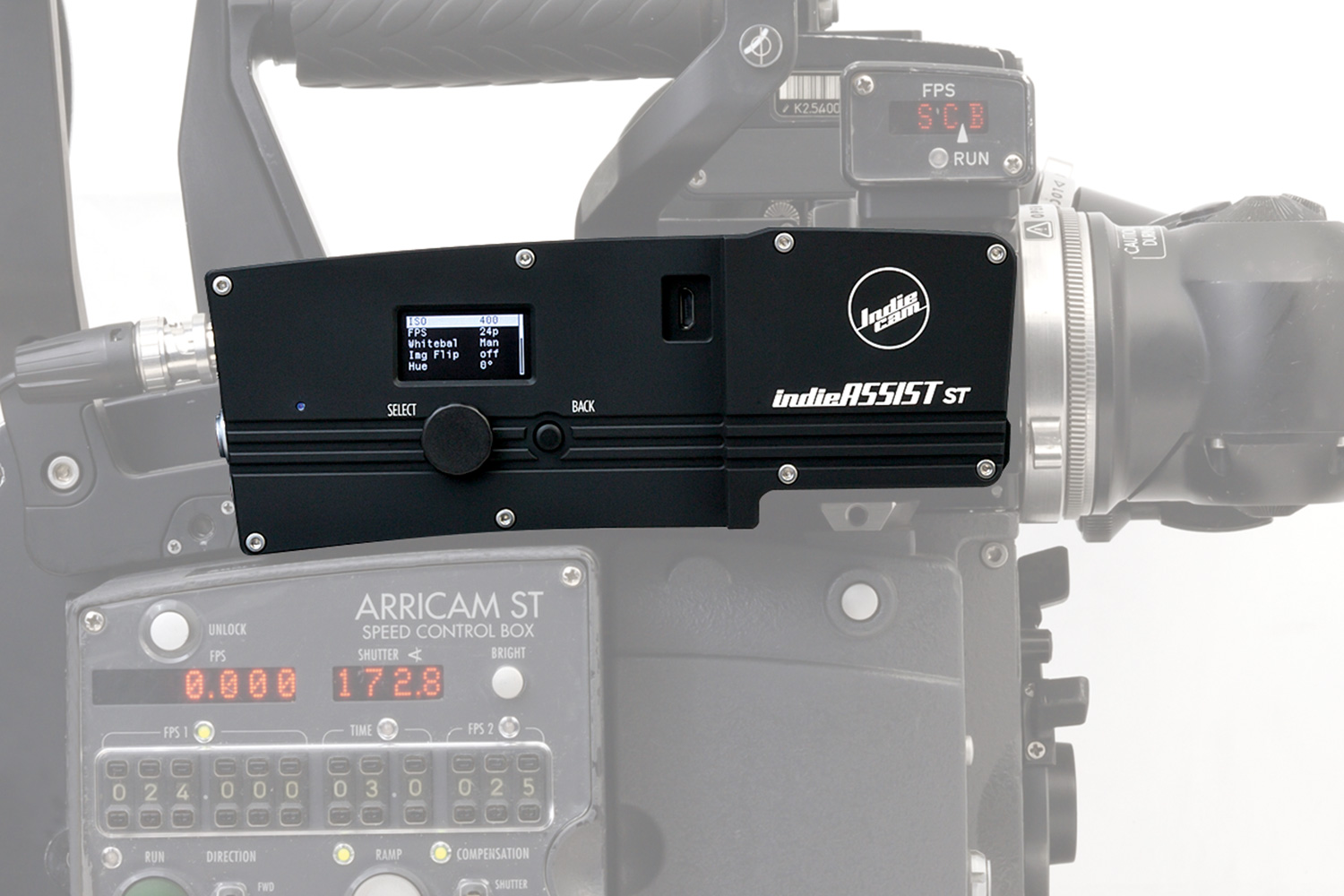

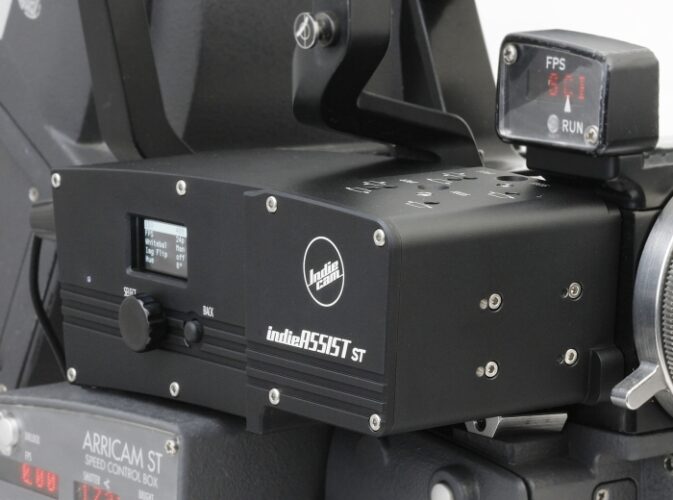

indieASSIST ST easily mounts on the original mounting positions of the ARRICAM ST film camera, which is also powering the indieASSIST ST with an internal connector. The unit is easily interchangeable between different ARRICAM ST camera bodies as well. The indieASSIST ST has an integrated focus control and image position adjustment mechanism. Focus can easily be set with an adjustment screw and image position can be modified in XY axis as well as rotation.

indieASSIST ST works with ARRICAM ST film camera bodies in 4 perf and 3(2) perf camera setups, as it can be easily modified by an experienced in-house camera technician following the manual at your facility.
The indieASSIST ST does not interfere with other ARRICAM ST accessories. It is very robust, compact, lightweight, has a minimal power draw and keeps cool during long shooting days.

indieASSIST ST features:

  • Excellent image quality and dynamic range
  • Mounts on the original ARRICAM ST IVS mounting points
  • Powered by internal connector from ARRICAM ST
  • Reads data from ARRICAM ST
  • Flicker free in all standard framerates ( 23.98 / 24 / 25 / 29.97 / 30 fps ) and their multiples ( i.e. 48 / 50 / 60 fps )
  • Adjust focus precisely to the groundglass on the fly with a live image with an easily accessible adjustment screw
  • Adjust and finetune image position to the groundglass on the fly with a live image with an easily accessible adjustment screws
  • Easy conversion between 3perf and 4perf setup
  • Large gain range for the widest coverage of lighting situations
  • Highly efficient heat dissipation keeps unit cool
  • Renowned integrated controls with a menu-structure used and proven in the entire indieASSIST family
  • Framelines and ARRICAM ST information overlays on SDI signal available with the indieASSIST OLB overlay box (available from end 2025)

Tech specs



Sensor Resolution 1920 x 1080
Readout Progressive
Shutter Rolling
Sensitivity ISO 32-3200
Modes YUV 4:2:2, 10 bit 1080p23.98 / 1080p24 / 1080p25 /
1080 p29.97 / 1080p30
Flicker Free ARRICAM ST speeds  23.98 / 24 / 25 / 29.97 / 30 / 48 / 50 / 60 fps

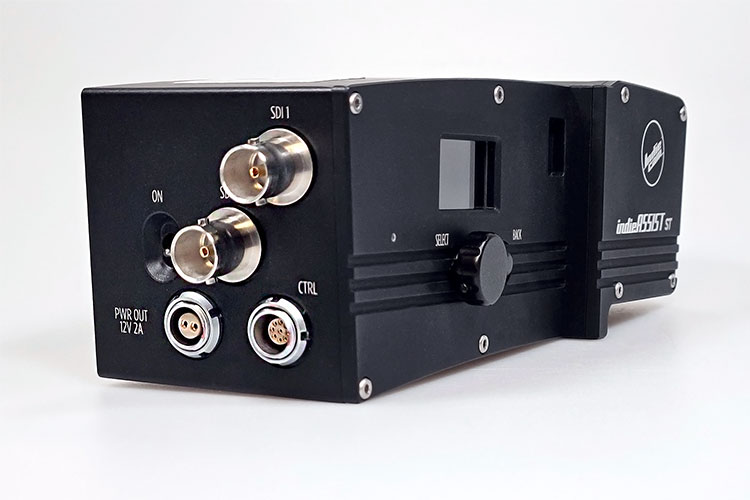

Interfaces 3G-HDSDI 1x SDI BNC
(second BNC with HDSDI loop available as upgrade)
Power + RS-485 Lemo
System Features White balance Auto / one-shot / manual / presets
Colour space YUV REC 709
Auto control AGC
Auto white balance
Framelines & Info Overlays on SDI signal available with the indieASSIST OLB overlay box (available from end 2025)
Power Voltage Internal connector from ARRICAM ST
Consumption less than 3 W
Power-out 12V Lemo 2-pin (2A)
Dimensions Size 150mm x 53mm x 55mm (5.9″ x 2.1″ x 2.2″)
Weight Approx. 500g (1.1lb)
