Odyssey7Q+

odyssey_hauptbild
CinemaDNG, OLED Monitoring, LUTs
  • Native Indiecam CinemaDNG recording
  • 2k RAW at 60fps
  • Smallest RAW-recorder
  • Longest recording times (2h/512GB SSD)
  • Live debayer preview and LUT control

Unlock the full potential of the indieGS2K with the Odyssey7Q+! This compact recorder and field monitor is the best and most powerful solution to record native CinemaDNG RAW footage from the indieGS2K camera.

It features rich metadata & timecode support as well as simple and sophisticated workflows. With the standard 512GB SSD-media you can record up to 2 hours for each camera.

Together with the indieGS2K, this is the smallest 2K RAW-recording setup, perfectly matching your visionary productions.

RAW-Recording
Indiecam native CinemaDNG recording directly from the indieGS2K is supported by the Odyssey RAW-Bundle. You can buy or rent the bundle, which includes a variety of RAW-Formats from other cameras as well (ARRI ALEXA, Canon C500, SONY, etc.).

The indieGS2K transmits RAW-Data via a simple 3G-HDSDI connection to the Odyssey7Q+. Included in this signal is a rich metadata-set, that is stored in the CinemaDNG files during recording and therefore available in post-production.

odyssey_2

TechSpecs

DISPLAY 7.7″ OLED
1280×800,
RGB 8-bit panel
~16 million colors
wide gamut
3400:1 contrast
176° viewing, true blacks
SDI VIDEO I/O HD-SDI/1.5G/3G support: Single/Dual/Quad Link inputs (HD/2K/Ultra-HD & 4K supported)
Dual HD-SDI 1.5G outputs, Full size BNCs
RAW CinemaDNG recording from indieGS2K via 3G HDSDI
over 2h recording duration with 512GB SSD
HDMI INPUT/OUTPUT HDMI I/O Version 1.4a support, 8-bit 422
 LUT SUPPORT ARRI LOG-C
CANON C-Log
Sony S-Log, S-Log 2, S-Log 3
Custom 3D-LUTs (.CUBE), etc.
FOCUS ASSIST Video + Edges (Peaking)
ZEBRA Dual adjustable zebra exposure indicators, selectable colors
FALSE COLOR False color with 6 programmable levels & adjustable ranges
WAVEFORM Luma only
RGB Parade
Red/Blue/Green only
HISTOGRAM Luma only
RGB Parade
Red/Blue/Green only
MULTI-STREAM Display for independent 1080 or 720 HD streams simultaneously (Quad-split with live switch capability
DIGITAL AUDIO I/O 2-channel SDI or HDMI embedded audio (48KHz, 24-bit)
ANALOG AUDIO I/O 3.5mm port for line level 2-channel unbalanced or 1-channel balanced input up to -10dB, 48KHz, 24-bit
3.5mm stereo headphone output
DC POWER 6.5 to 34VDC
POWER DRAW 8 watts (monitor only), 9 to 18 watts (depending on selected record mode)

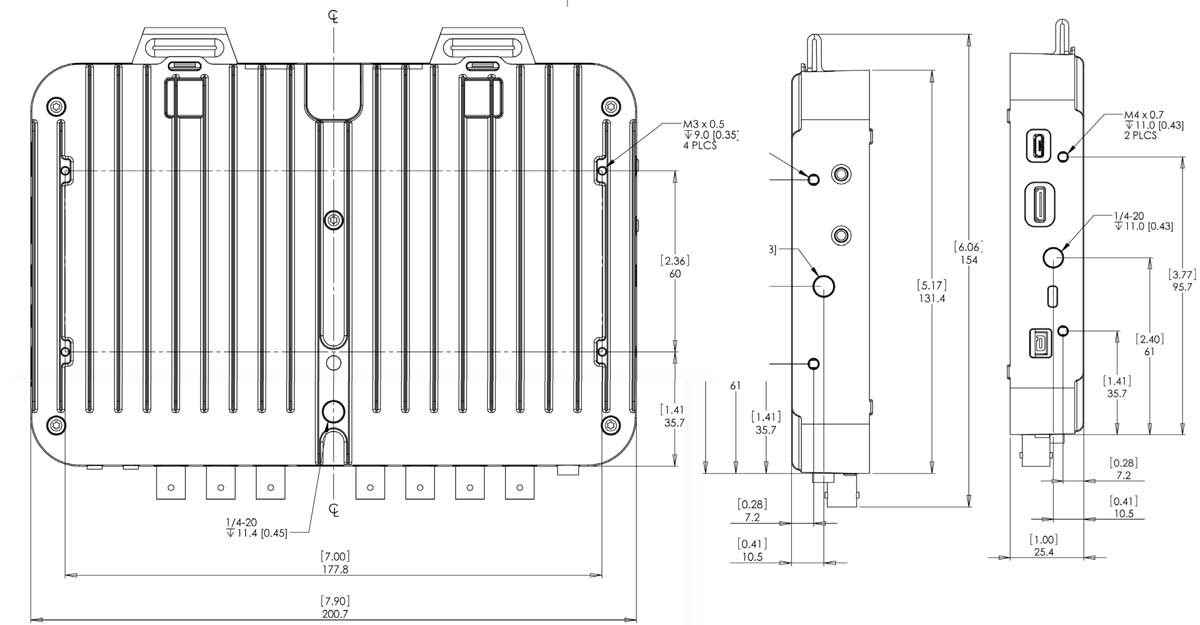

WEIGHT & SIZE 560 grams / 1.2 lbs., 7.9″ x 6.1″ x 1.0″ (200 x 155 x 25mm)
OPERATION -10 to +40° (Operating), -20 to +70° (Storage)
RAW-Workflow
workflow_3d_2

odyssey_3
