indieMORPHO – Universal Image Processor

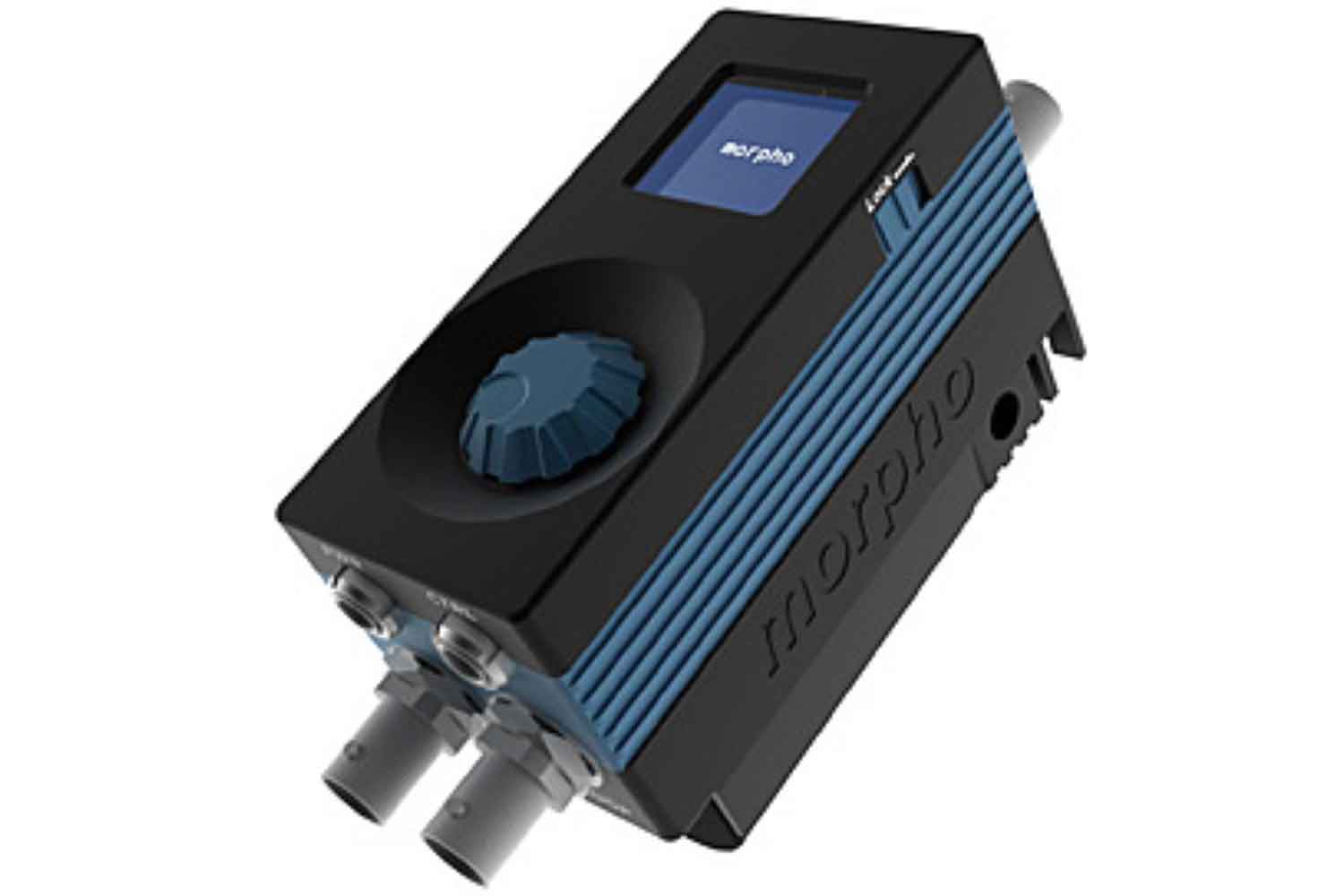

product_morpho_2
Broadcast CCU and LUT-Box
  • Adds broadcast functionality to indieGS2K & indiePOV
  • Superior debayering
  • Easy connectivity through 3G HDSDI and autodetect
  • Small size, low power
  • Detail enhancer
  • Advanced noise management
The indieMORPHO is a palm-sized and unique HDSDI 3G Image Processor and LUT-Box morpho. It adds pristine 3G broadcast video output to our amazingly small cameras. It can be connected via 3HDSDI and auto detects the signals and metadata coming from the camera.

It incorporates an advanced debayering engine, full gamma and paint controls, a sophisticated noise management block, and a detail enhancer.

On location, settings can be modified with a selection wheel and an OLED display. When operated remotely and in large arrays multiple indieMORPHOs can be controlled via RS485 or wireless RF (future upgrade).

indieMORPHO includes an active HDSDI loop-out connector, which enables simultaneous broadcast and RAW recording. It also allows daisy-chaining image processing workflows. It allows for processing of up to 2048×1080 resolutions at up to 60 fps. Incoming signals can be converted and cropped to any desired output format.

The unit is very small, accepts a very wide range of powering options, and consumes only 4W at full processing.

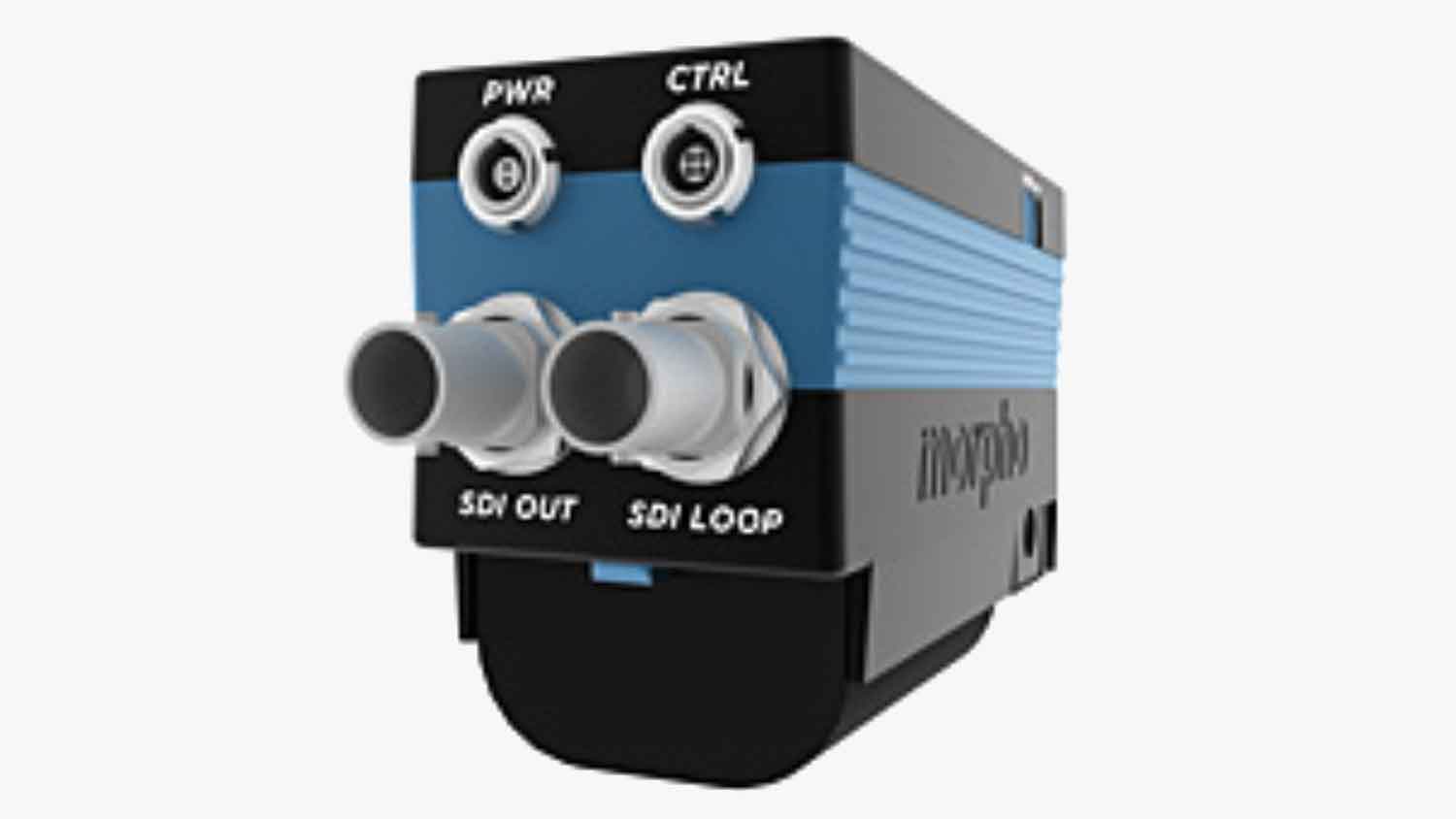

product_morpho

References

beethoven_poster_2

360° IMMERSIVE BEETHOVEN

Partner: Fraunhofer Heinrich Hertz Institut
Berliner Philharmoniker
Neumann Microphones
indie_OMNICAM_handheld

OMNICAM

Partner: Fraunhofer HHI, Berlin
Christian Weissig
Peter Kauff



TechSpecs

VIDEO IN 3G HDSDI RAW & 422 (auto sensing)
VIDEO OUT 3G HDSDI, up to 2k 60p
HDSDI Loop Out (for RAW recording & daisy chaining)
PROCESSING Superior Debayering
Proprietary Demosaicing Algorithms
Sophisticated Detail Enhancer (adjustable)
Advanced Noise Management (adjustable)
White Balance, paint RGB
RGB Black Balance
Full Gamma Control
Black Gamma
Color Matrix (adjustable)
2D LUTs
3D LUT (future upgrade)
COMMUNICATION Display and Selection Wheel
RS485
USB
Wireless (future upgrade)
POWER Battery powered
DC-IN 6-24V
4W @ full processing
SIZE 130 x 50 x 50 mm (5.1 x 1.9 x 1.9 inch)
WEIGHT 300g



workflow_broadcast_3

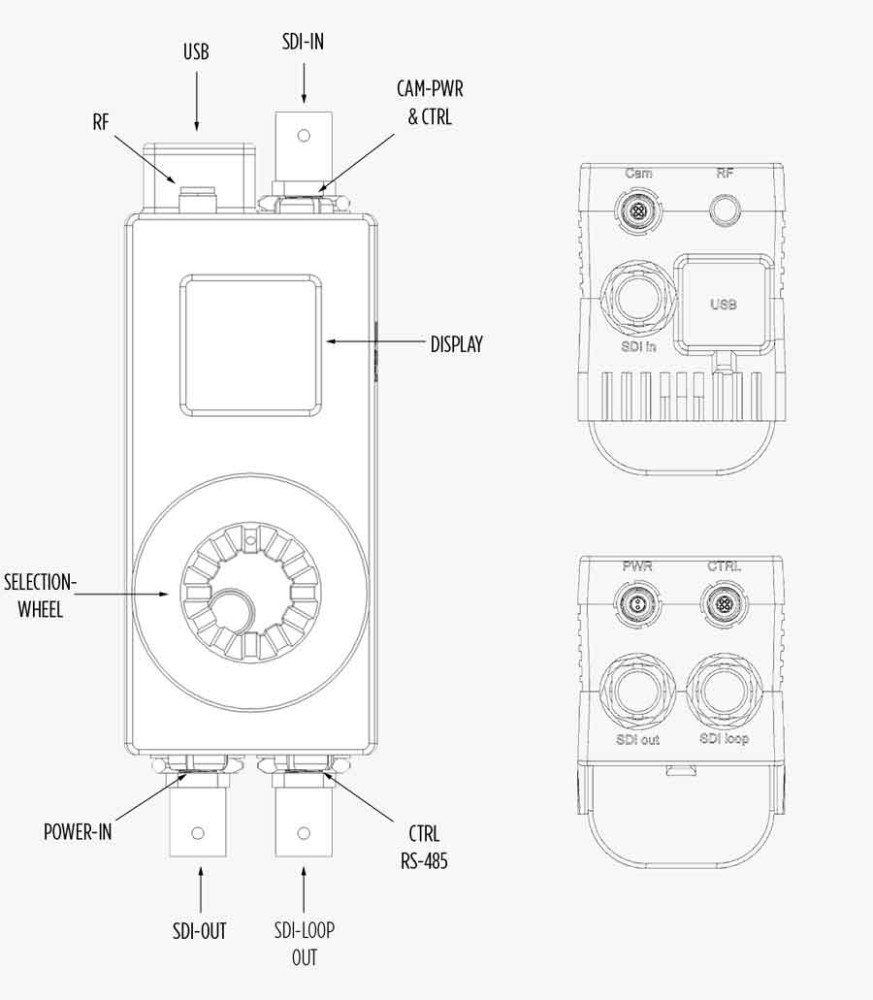

morpho_techn_2
